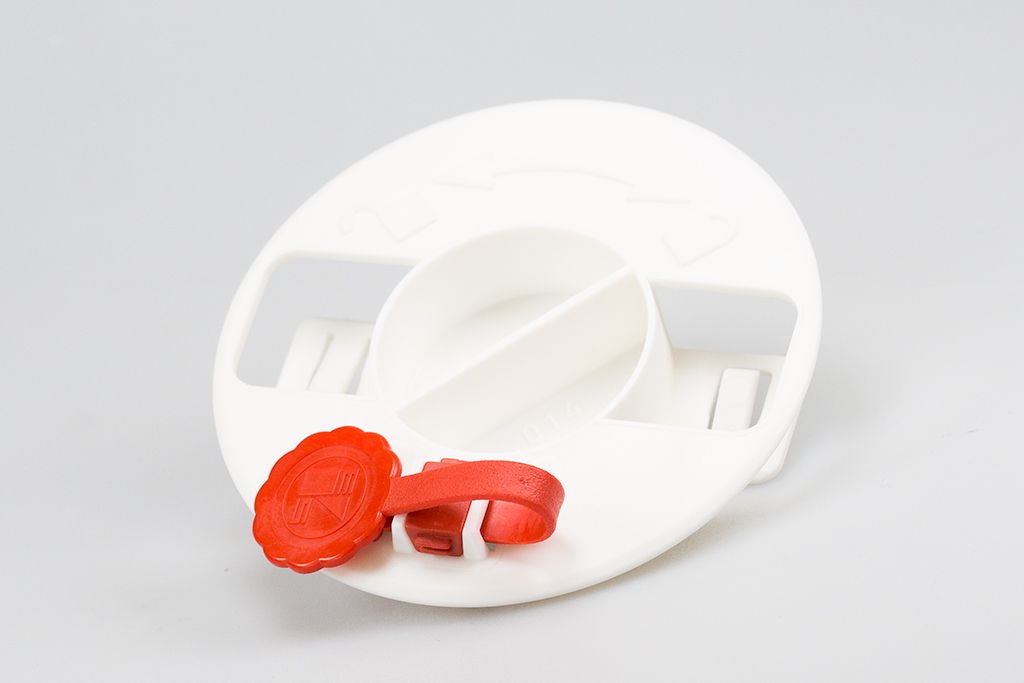

产品介绍：

•用于多层瓦楞纸板的可拆卸连接

•sits flush on the front side due to the spring elements on the locking latches

•由于锁闩上的弹簧元件，与前侧齐平

•additional security function by using a security pin and seal

•使用安全别针和封条实现额外的安全功能

•for connection distances up to 8 mm

•连接距离不超过8 mm

•also available in versions for connection distances of 14 mm, 22 mm and 26 mm

•也有14 mm、22 mm和26 mm连接距离的版本

•可重复使用

•assembled by a 90° clockwise rotation all the way to the stop

•顺时针旋转90°直至停止

•disassembled by a 90° anticlockwise rotation (self explanatory symbols)

•逆时针旋转90°拆卸

•wears out only slightly on the outside and inside

•外部和内部仅轻微磨损

•no mounting space on the rear side required

•背面无需安装空间

•made of standard material

•标准材料制成

•also available as Bayonet Lock EKS 008.0 (no security function)

•也可作为卡扣锁EKS 008.0（无安全功能）
